發電機組配件CH11024緊張輪

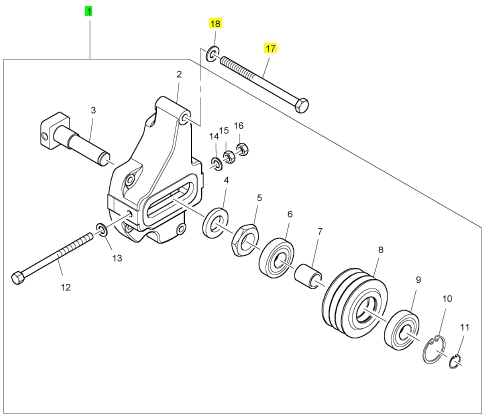

項序 零配件號碼 最近的零配件號碼 描述

1 CH11024 1 CH11024 緊張輪

1 CH11024 1 CH11024 緊張輪

17 CH10813 4 CH10813 螺拴

18 ST15903 4 ST15903 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11024 1 CH11024 TENSIONER ARM

1 CH11024 1 CH11024 TENSIONER ARM

17 CH10813 4 CH10813 BOLT

18 ST15903 4 ST15903 WASHER

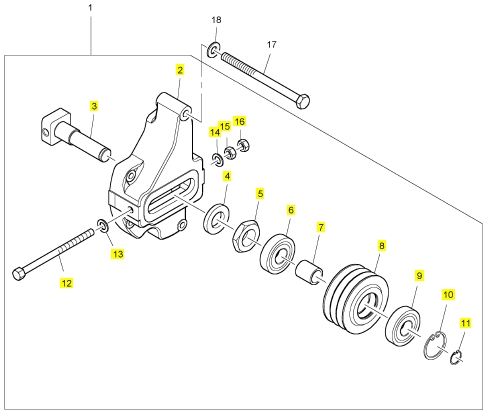

項序 零配件號碼 最近的零配件號碼 描述

2131 A012 2 2131 A012 墊圈

2318 A210 2 2318 A210 螺帽

CH11444 2 CH11444 滾珠軸承

2 1 殼

3 CV17729 1 CV17729 軸

4 CV17731 1 CV17731 墊圈

5 CV5324 1 CV5324 螺帽

6 CH11444 1 CH11444 滾珠軸承

7 CV17765 1 CV17765 套筒

8 CV17732 1 CV17732 拉緊帶輪

9 CH11444 1 CH11444 滾珠軸承

10 2722 A022 1 2722 A022 CIRCLIP

11 2721351 1 2721351 CIRCLIP

12 CV19793 1 CV19793 螺拴

13 2131 A012 1 2131 A012 墊圈

14 2131 A012 1 2131 A012 墊圈

15 2318 A210 1 2318 A210 螺帽

16 2318 A210 1 2318 A210 螺帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2131A012 2 2131A012 WASHER

2318A210 2 2318A210 NUT

CH11444 2 CH11444 BALL BEARING

2 1 HOUSING

3 CV17729 1 CV17729 SHAFT

4 CV17731 1 CV17731 WASHER

5 CV5324 1 CV5324 NUT

6 CH11444 1 CH11444 BALL BEARING

7 CV17765 1 CV17765 SLEEVE

8 CV17732 1 CV17732 TENSIONER PULLEY

9 CH11444 1 CH11444 BALL BEARING

10 2722A022 1 2722A022 CIRCLIP

11 2721351 1 2721351 CIRCLIP

12 CV19793 1 CV19793 BOLT

13 2131A012 1 2131A012 WASHER

14 2131A012 1 2131A012 WASHER

15 2318A210 1 2318A210 NUT

16 2318A210 1 2318A210 NUT

項序 零配件號碼 最近的零配件號碼 描述

1 CH12386 1 CH12386 FANDRIVE

1 CH12386 1 CH12386 FANDRIVE

18 CH12433 1 CH12433 圈

19 2315 C066 6 2315 C066 螺旋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12386 1 CH12386 FANDRIVE

1 CH12386 1 CH12386 FANDRIVE

18 CH12433 1 CH12433 RING

19 2315C066 6 2315C066 SCREW

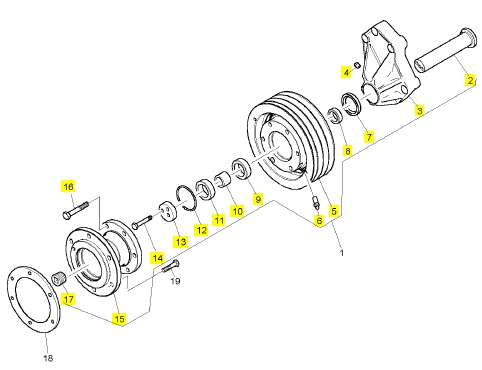

項序 零配件號碼 最近的零配件號碼 描述

2 CH12391 1 CH12391 軸

3 1

4 CH12908 1 CH12908 放泄閥

4 CH12376 1 CH12908 放泄閥

5 CH12387 1 CH12387 風扇皮帶輪 223.5

6 CH12374 1 CH12374 球

7 CH12378 1 CH12378 密封墊

8 CH12379 1 CH12379 間隔器

9 CH12382 1 CH12382 滾珠軸承

10 CH12383 1 CH12383 間隔器

11 CH12375 1 CH12375 滾珠軸承

12 CH12384 1 CH12384 密封墊O形圈

13 CH12380 1 CH12380 墊圈

14 CH12377 2 CH12377 螺拴

15 CH12390 1 CH12390 承接器

16 CH10585 6 CH10585 螺拴

17 CH10220 1 CH10220 堵塞

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 CH12391 1 CH12391 SHAFT

3 1 FAN DRIVE HOUSING

4 CH12908 1 CH12908 RELIEF VALVE

4 CH12376 1 CH12908 RELIEF VALVE

5 CH12387 1 CH12387 FAN DRIVE PULLEY 223.5

6 CH12374 1 CH12374 BALL

7 CH12378 1 CH12378 SEAL

8 CH12379 1 CH12379 SPACER

9 CH12382 1 CH12382 BALL BEARING

10 CH12383 1 CH12383 SPACER

11 CH12375 1 CH12375 BALL BEARING

12 CH12384 1 CH12384 SEAL - O RING

13 CH12380 1 CH12380 WASHER

14 CH12377 2 CH12377 BOLT

15 CH12390 1 CH12390 ADAPTOR

16 CH10585 6 CH10585 BOLT

17 CH10220 1 CH10220 PLUG

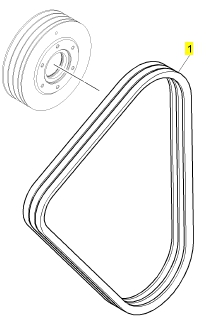

項序 零配件號碼 最近的零配件號碼 描述

1 CH11186 1 CH11186

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11186 1 CH11186 BELT

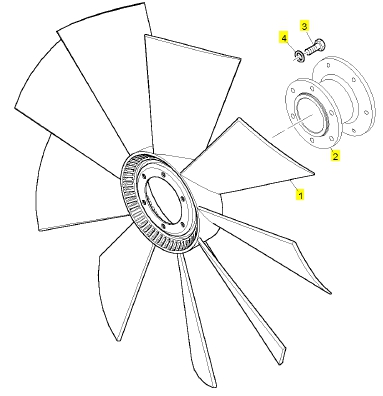

項序 零配件號碼 最近的零配件號碼 描述

2131 A010 6 2131 A010 墊圈

ST44456 6 ST44456 螺拴

1 CH11188 1 CH11188 風扇

2 1 風扇承接器

3 ST44456 6 ST44456 螺拴

4 CH10255 6 CH10255 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2131A010 6 2131A010 WASHER

ST44456 6 ST44456 BOLT

1 CH11188 1 CH11188 FAN

2 1 FAN ADAPTOR

3 ST44456 6 ST44456 BOLT

4 CH10255 6 CH10255 WASHER

購買配件須知：

1、購買前請確認零部件型號、技術參數、編碼、適用機型。因批次不同或存在零部件差異，請以實物為準。

2、為選購正確的零部件，可以通過對比現場零部件和本網站所展示的是否一致，來確保購買到準確的零部件。

3、本網站目前暫未上架全部機型的零部件，如在網站中未查詢到的零部件，請聯系我們。
